Tools (Process View)

Build matrix style unattended view screens for real-time display of test results. The Process View tool is commonly used in Control Rooms by Operators. Control Charts can be set to automatically execute searching for runs & trends (Figure 1). Users can drilldown on result values to expose all known information about a result (Figure 2).

• Connect or 'travel' to another LabSoft LIMS database and retrieve information.
• SPC color coding of data cells.
• Graph data points with Quick Graph.
• Access Results Entry.
• Display data from OSIsoft's PI software.
• Automatically refresh Data Grid.
• Display multiple Control Charts that automatically update with the Data Grid.

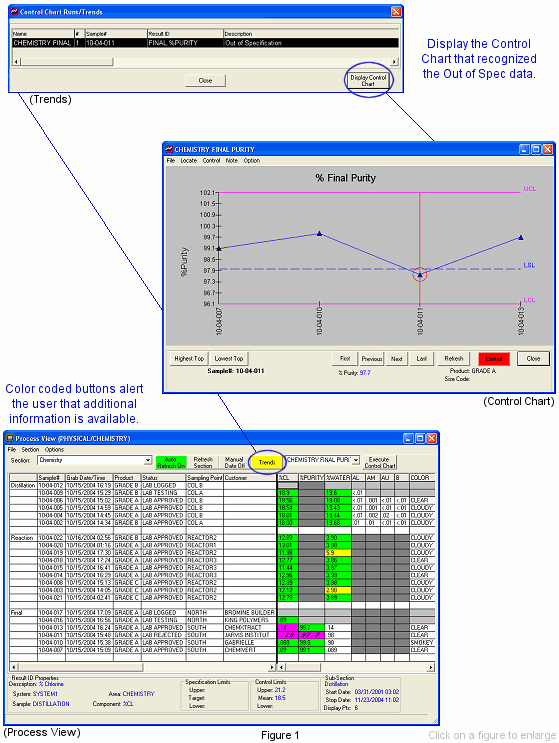

Process View can automatically execute Control Charts as the Data Grid refreshes to monitor Control Events in  real-time. Color coded buttons alert the user when additional information is available.

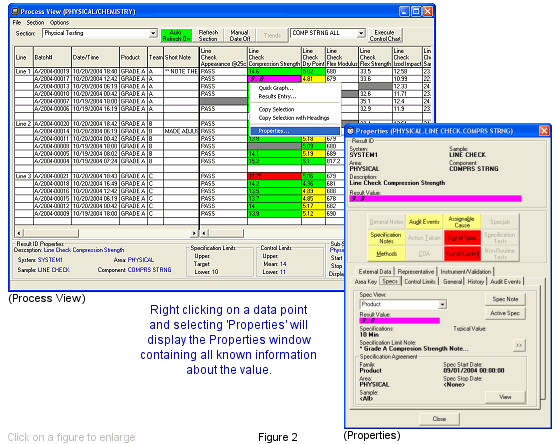

Access the Properties window while using Process View to display all known information and further explore a test value.
